Embermeter Light Indicator
Print
Modified on: Tue, 1 Dec, 2020 at 1:21 PM
Screen Image | Colour |
---|

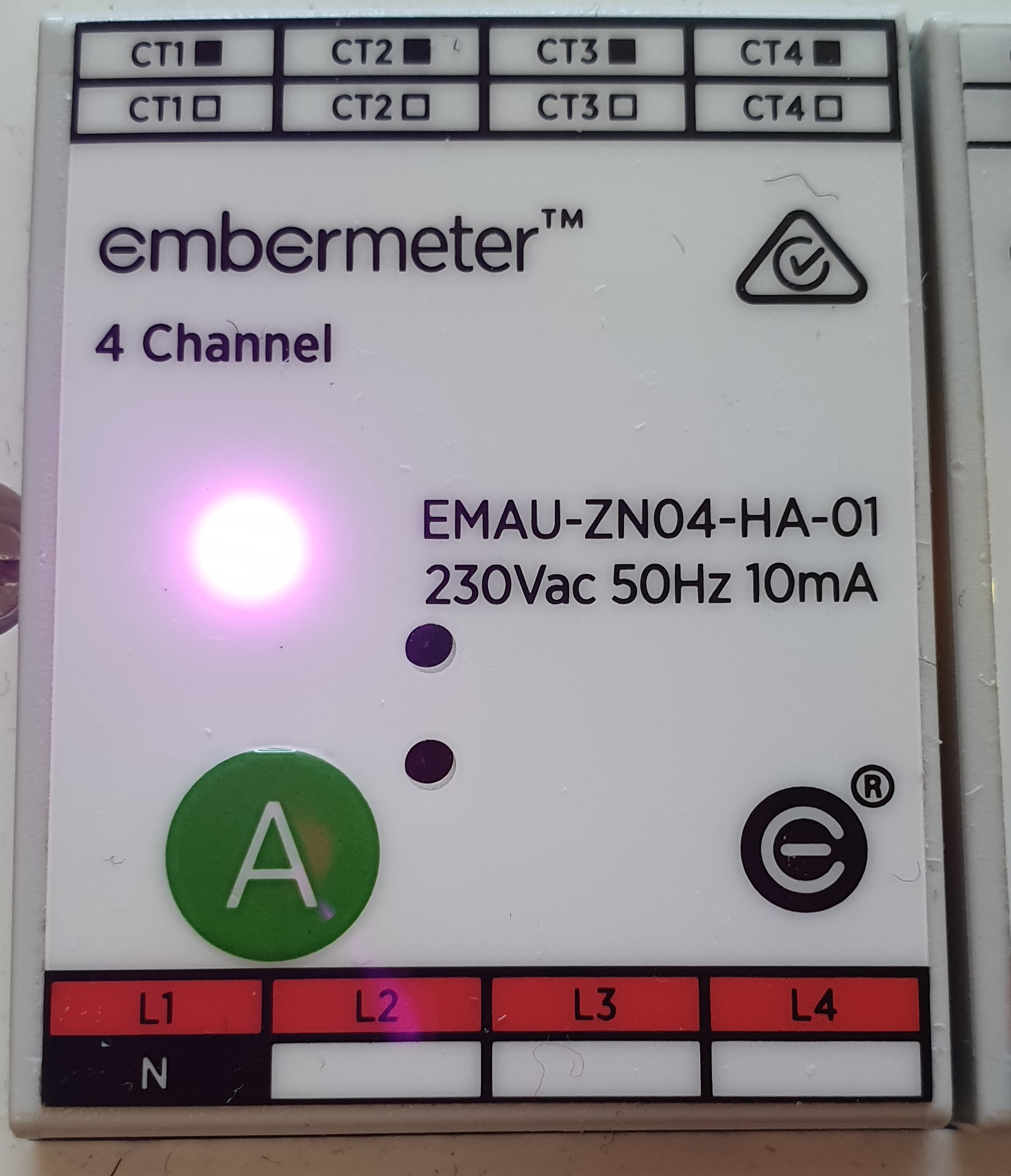

| Magenta (pink/purple):- The Embermeter is ready to connect to the Emberpulse unit.
To connect your Embermeter to your Emberpulse unit, refer to Resetting and re-connecting your Embermeter
|

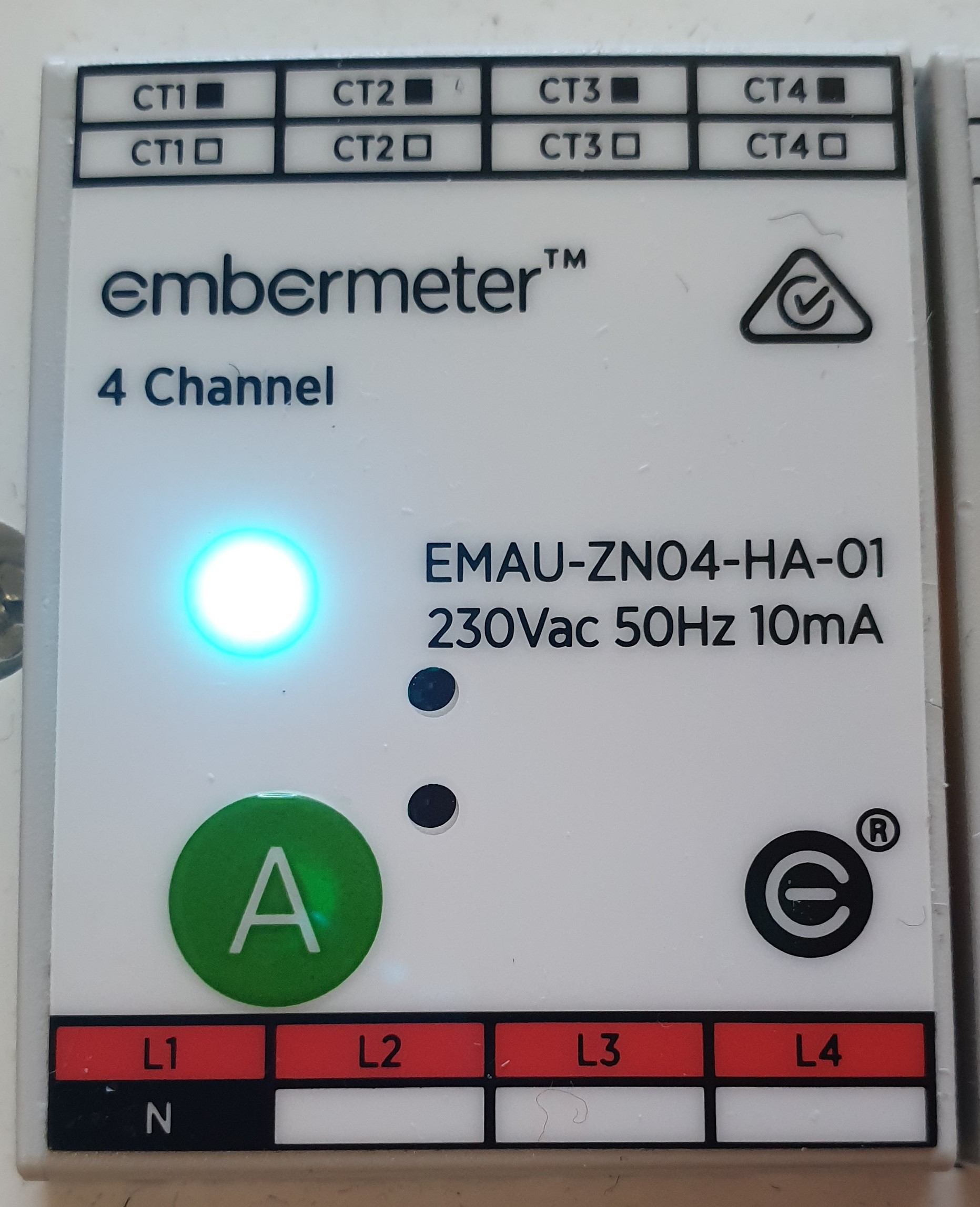

| Cyan (light blue):- The Embermeter has successfully made a connection with the Emberpulse unit and is able to communicate with the unit
|

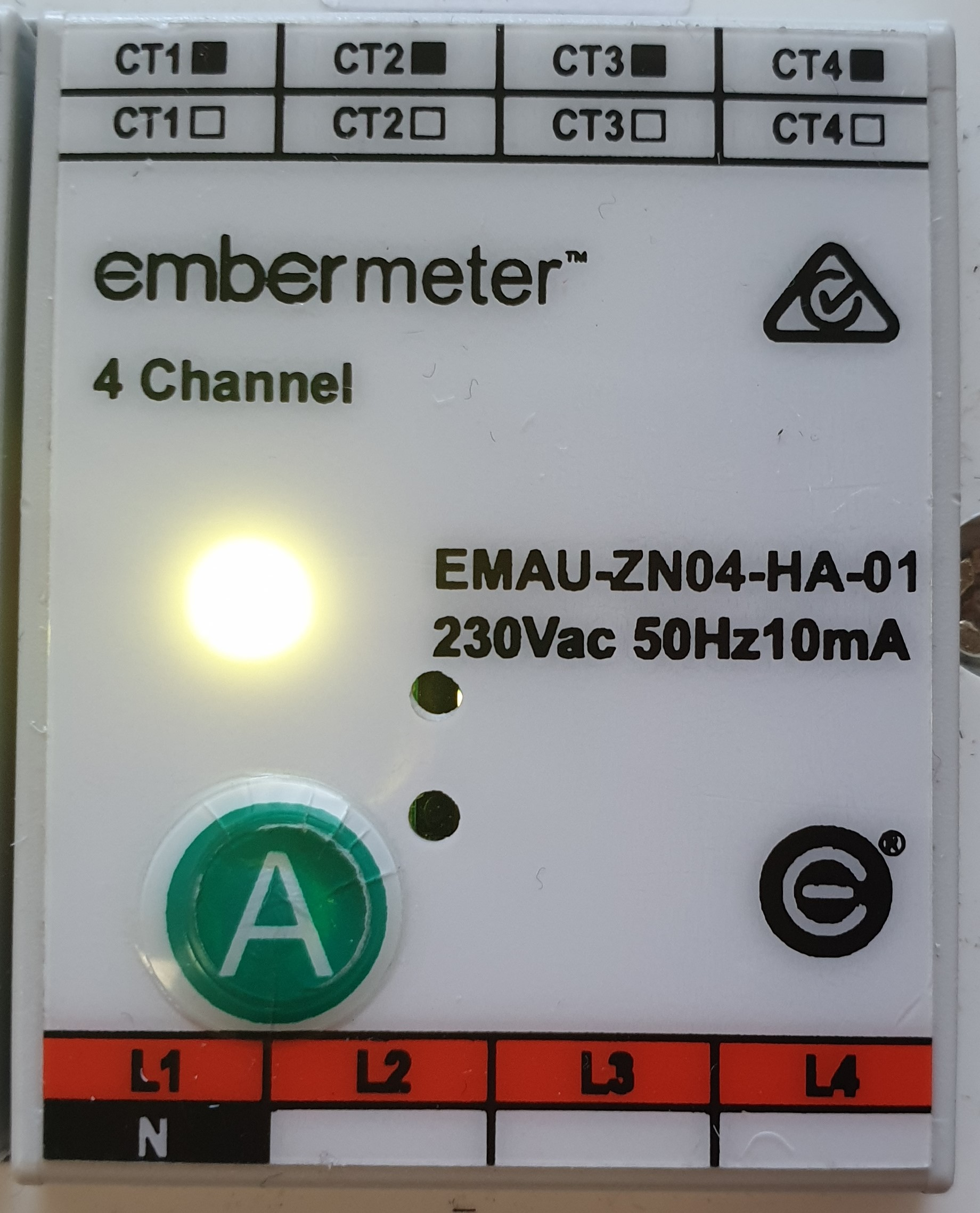

| Yellow:- The Embermeter had a connection to an Emberpulse unit. However, it is currently unable to communicate with it
Causes: - The Embermeter has disconnected from the Emberpulse unit located inside the house. This could be due to signal strength or the Emberpulse is not powered on.
- The Embermeter has lost connection with the Emberpulse unit located inside the house as the previous unit has been replaced.
|
